California Bathroom Building Codes: What Your Contractor Should Know (2026 Edition)

Why Building Codes Matter for Bathroom Remodels

Building codes exist to prevent injuries, fires, water damage, and structural failure. In a bathroom, codes address real hazards: electrocution from water contacting live circuits, scalding from unregulated hot water, mold from inadequate ventilation, sewage gas intrusion from improper plumbing venting, and structural collapse from overloaded floors.

California has some of the most stringent building codes in the country. The state adopts the International Building Code, International Plumbing Code, and National Electrical Code as base codes, then adds California-specific amendments that are often more restrictive. Your contractor does not get to pick which codes to follow — compliance is not optional, and it is verified through inspections.

This article is not a code manual. It is a practical reference that explains the specific code requirements most relevant to bathroom remodels in the Sacramento Region — the ones your contractor should know and the ones you can verify. If a contractor tells you “we do not need to worry about that,” this article will help you determine whether that is true or whether it is a shortcut that could cost you later.

Three Codes That Govern Every Bathroom: CBC, CPC, CEC

Three distinct California codes apply to bathroom construction and remodeling. Each is enforced by different inspectors, and each covers a different building system:

• California Building Code (CBC) — Title 24, Part 2: Covers structural requirements, fire safety, accessibility, and general construction standards. In a bathroom, the CBC governs framing, subfloor capacity, moisture barriers, and accessibility requirements for accessible bathrooms. Based on the International Building Code (IBC) with California amendments.
• California Plumbing Code (CPC) — Title 24, Part 5: Covers all plumbing systems including water supply, drainage, venting, fixture installation, water heater connections, and shower/tub valve requirements. Based on the Uniform Plumbing Code (UPC) with California amendments.
• California Electrical Code (CEC) — Title 24, Part 3: Covers all electrical work including circuits, outlets, GFCI protection, lighting, and exhaust fan wiring. Based on the National Electrical Code (NEC) with California amendments.

Additionally, Title 24, Part 6 (Energy Code) applies to bathroom remodels when lighting, ventilation equipment, or windows are changed. This code drives requirements like ENERGY STAR exhaust fans and LED lighting specifications.

Electrical: GFCI Protection and Circuit Requirements

Bathrooms are inherently high-risk for electrical hazards because water and electricity are in close proximity. The CEC addresses this with several specific requirements:

GFCI (Ground Fault Circuit Interrupter) protection:

• All 125-volt, 15- and 20-amp receptacles in the bathroom must have GFCI protection. No exceptions.
• GFCI protection can be provided by a GFCI breaker in the electrical panel or by a GFCI receptacle (the outlet with test/reset buttons).
• If you have a GFCI receptacle protecting downstream outlets, all downstream outlets on that circuit must be tested to confirm protection.
• GFCI devices should be tested monthly by pressing the test button and verifying the circuit trips.

Dedicated bathroom circuit:

• The bathroom must have at least one 20-amp circuit dedicated to bathroom receptacles.
• This circuit can serve receptacles in multiple bathrooms but cannot serve receptacles or loads outside of bathrooms (with limited exceptions for lighting).
• The exhaust fan and lighting can be on a separate 15-amp circuit or on a general lighting circuit.

GFCI outlets are required on every bathroom receptacle in California — the test/reset buttons are not optional features

Additional electrical requirements:

• At least one wall-switch-controlled light must be installed in the bathroom (you cannot rely solely on a pull-chain or always-on fixture).
• Light fixtures within the shower or tub enclosure must be rated for wet locations (not just damp locations).
• Switches must not be accessible from within the tub or shower (typically installed at least 3 feet from the edge of the tub or shower).
• If heated floors are installed, the heating element must be on a dedicated GFCI-protected circuit.

Ventilation: CFM Ratings, Ducting, and Title 24

Inadequate bathroom ventilation causes mold, peeling paint, deteriorated drywall, and wood rot. In the Sacramento Region, where summer temperatures frequently exceed 100 degrees and winter mornings bring cold surfaces that promote condensation, proper ventilation is not a luxury — it is a code requirement and a practical necessity.

Ventilation requirements under the California Mechanical Code:

• Every bathroom must have either a window that opens (minimum 1.5 square feet of openable area) or a mechanical exhaust fan.
• If a mechanical fan is installed, the minimum rating is 50 CFM for intermittent use (fan runs during and shortly after bathroom use) or 20 CFM for continuous operation (fan runs 24/7 at low speed).
• For bathrooms over 100 square feet, the fan should provide 1 CFM per square foot of bathroom floor area. A 120-square-foot master bathroom needs a 120 CFM fan.
• Enclosed toilet compartments within a bathroom need their own exhaust — 50 CFM minimum or a separate fan.

Ducting requirements:

• The exhaust fan must vent to the exterior of the building — not into the attic, soffit, crawl space, or wall cavity.
• Duct material must be smooth-walled rigid or semi-rigid metal duct. Flexible vinyl duct is not allowed by code in many jurisdictions and significantly reduces airflow even where permitted.
• Duct runs should be as short and straight as possible. Every 90-degree elbow reduces effective CFM. A 4-inch duct should not exceed 25 feet with two elbows (effective length increases with each elbow).
• The duct termination at the exterior must have a backdraft damper or louver to prevent air infiltration when the fan is off.

Title 24 Energy Code requirements:

• Bathroom exhaust fans installed during new construction or remodels must be ENERGY STAR certified.
• The fan must have a maximum sound rating of 1.0 sone for continuous-use fans. Intermittent fans have higher allowable sone ratings but quieter fans are preferred.
• The fan must be controlled by a humidity-sensing switch, timer switch, or other automatic control — not just a manual on/off switch — for compliance with 2022 and later energy code cycles.

Proper exhaust duct routing using rigid metal duct to an exterior wall termination — flexible vinyl duct (not shown) is not code-compliant in most jurisdictions

Plumbing: Anti-Scald Valves and Water Supply

The California Plumbing Code includes several requirements designed to prevent scalding, ensure reliable water supply, and protect against contamination:

Anti-scald protection:

• All shower and tub-shower valves must be pressure-balancing, thermostatic, or combination type.
• The valve must limit maximum hot water temperature at the showerhead to 120 degrees Fahrenheit.
• Pressure-balancing valves compensate for pressure fluctuations (like when a toilet flushes or washing machine starts) that would otherwise cause a spike in hot water temperature.
• This requirement applies to all new installations and valve replacements. If your existing shower has a non-compliant valve (typically an older two-handle design without a pressure-balancing cartridge), it must be replaced during a remodel that includes the shower.

Water supply requirements:

• Hot and cold water supply must be provided to the lavatory (sink), tub, and shower.
• Shutoff valves (angle stops) are required at each fixture for individual isolation.
• Supply lines must be properly supported and secured — no unsupported runs that could vibrate or stress fittings.
• Cross-connection prevention: the shower and tub filler must have air gaps or backflow prevention to protect the potable water supply.

Water heater considerations:

If the remodel adds fixtures (such as adding a second showerhead or converting a tub to a shower with body sprays), the existing water heater must have sufficient capacity to supply the increased demand. This is not always a code issue per se, but undersized water heaters combined with anti-scald valves can result in poor performance — the valve limits temperature, and if the heater cannot keep up with demand, you run out of hot water quickly.

Fixture Clearances: Toilet, Shower, Vanity Minimums

The CPC specifies minimum clearances around bathroom fixtures to ensure usability and accessibility. These minimums are non-negotiable — if your layout does not meet them, the inspector will not pass it:

These are code minimums. In practice, 15 inches from the toilet centerline to a wall feels tight. We recommend 18 inches when the layout allows it. Similarly, 24 inches in front of the toilet is the legal minimum, but 30 inches provides a much more comfortable experience.

Plumbing Venting: What Happens When It Is Wrong

Every drain in a bathroom must be vented. Venting serves two purposes: it allows air to enter the drain system so water flows freely (like removing your thumb from the top of a straw), and it prevents sewer gas from entering the building through the drain traps.

How venting works: A vent pipe connects to the drain line downstream of the trap and extends upward through the roof. This pipe allows air to equalize pressure in the drain system. Without it, draining water creates negative pressure that can siphon water out of nearby traps, breaking the seal that prevents sewer gas from entering the bathroom.

Symptoms of improper venting:

• Slow drains that are not clogged (water glugs instead of flowing smoothly).
• Gurgling sounds when water drains from any fixture.
• Sewer smell in the bathroom, especially after running water.
• Water siphoning from the toilet bowl (the water level drops after a nearby fixture drains).

CPC venting requirements:

• Each fixture must be individually vented or connected to a properly designed wet-vent or circuit-vent system.
• Vent pipes must rise vertically above the flood level rim of the fixture before running horizontally.
• The maximum distance from the fixture trap to its vent connection is determined by the drain pipe size (for a 1.5-inch drain, the maximum is 6 feet; for a 2-inch drain, 8 feet).
• Air admittance valves (AAVs, also called Studor vents) are allowed by the CPC in certain situations as alternatives to conventional vent pipes that penetrate the roof. However, at least one vent in the system must extend through the roof — the entire system cannot rely solely on AAVs.

Structural Load: Can Your Floor Support Tile?

Tile, mortar, and backer board add significant weight to a floor. The CBC requires residential bathroom floors to support the dead load (weight of permanent materials) plus a minimum live load of 40 pounds per square foot. Here is what typical bathroom floor assemblies weigh:

• Cement backer board (1/2 inch): approximately 3 lbs/sq ft
• Thin-set mortar (two layers): approximately 2-3 lbs/sq ft
• Porcelain tile (standard): approximately 4-5 lbs/sq ft
• Natural stone tile: approximately 6-15 lbs/sq ft depending on thickness
• Mortar bed (traditional shower pan): approximately 12-15 lbs/sq ft
• Total for standard tile on backer board: approximately 10-12 lbs/sq ft
• Total for stone on mortar bed: approximately 20-30 lbs/sq ft

Evaluating floor joist size, spacing, and span to confirm the structure can support the weight of tile, mortar, and fixtures

When floor reinforcement may be needed:

• Floor joists are 2x6 or 2x8 (common in older Sacramento homes and some second floors).
• Joists are spaced at 24 inches on center instead of 16 inches.
• The span (distance between supports) is long relative to the joist size.
• You are installing natural stone or a mortar bed shower pan (heavy assemblies).
• There is visible deflection (bounce) in the floor when you walk across it.

Floor deflection is a separate issue from load capacity. Even a floor strong enough to hold the weight can flex too much for tile. The Tile Council of North America (TCNA) specifies a maximum deflection of L/360 for tile installations — meaning a 12-foot span can deflect no more than 0.4 inches under load. Excessive deflection cracks grout and eventually cracks tile. Your contractor should evaluate the floor before committing to a tile floor plan.

Waterproofing and Shower Pan Requirements

The CPC requires shower compartments to be watertight. The specific requirements include:

• Shower floors must be constructed of smooth, noncorrosive, and nonabsorbent material, or lined with a listed waterproof membrane.
• Shower pan liners must turn up on all sides to a height of at least 2-3 inches above the finished threshold (check your local amendment — some require more).
• Shower pan liners must be tested by filling with water to the flood level and holding for a period specified by the local building department (typically 24 hours).
• The drain must be installed in a manner that allows water on the liner to reach the weep holes.

Bonded waterproof membrane systems (like Schluter Kerdi) are accepted by the CPC as alternatives to traditional pan liners, provided the system is a listed (tested and approved) waterproof assembly. For a detailed comparison of these two approaches, see our Schluter vs. traditional pan waterproofing guide.

What Triggers a Permit Requirement

Not every bathroom update requires a permit. Here is a practical breakdown:

Permit generally required:

• Moving, adding, or removing plumbing fixtures (toilet, shower, tub, sink).
• Moving, adding, or modifying plumbing supply or drain lines.
• Adding, moving, or modifying electrical circuits, outlets, or switches.
• Installing or modifying an exhaust fan duct that penetrates the building envelope.
• Any structural modification (removing or modifying a wall, adding a beam, modifying floor framing).
• Converting a tub to a shower (involves drain modification, new pan construction, and often electrical and ventilation changes).
• Adding a bathroom where one did not exist.

Permit generally not required:

• Replacing fixtures in the same location with the same type (swapping a toilet for a toilet, a faucet for a faucet).
• Painting, wallpapering, or applying cosmetic finishes.
• Replacing a mirror or medicine cabinet (unless electrical is involved).
• Replacing a vanity if no plumbing is moved.
• Re-grouting or re-caulking existing tile.

Inspection Checkpoints: What Gets Checked and When

A permitted bathroom remodel in the Sacramento Region typically involves the following inspections, each occurring at a specific construction phase:

1. Rough plumbing inspection: After all supply and drain pipes are installed but before walls and floors are closed. The inspector verifies pipe sizes, slopes (drain pipes must slope a minimum of 1/4 inch per foot), venting connections, fixture placement, and connection integrity. Typically includes a pressure test on supply lines.
2. Rough electrical inspection: After all wiring is run but before walls are closed. The inspector verifies wire gauge, circuit protection (breaker sizes), box placement, GFCI protection, grounding, and compliance with wet-area requirements.
3. Framing inspection: If structural work was performed (wall modification, header installation, floor reinforcement), framing is inspected before it is covered. The inspector checks member sizes, connections, blocking for grab bars or heavy fixtures, and fire blocking.
4. Shower pan / waterproofing inspection: After the shower pan liner or membrane is installed but before tile. For traditional pans, this includes a flood test. The inspector verifies the liner type, installation method, height up walls, drain connection, and test results.
5. Final inspection: After all work is complete — tile installed, fixtures connected, electrical live, ventilation operational. The inspector verifies fixture function, GFCI operation, anti-scald valve performance, vent fan operation and ducting, hot/cold water delivery, drain function, and overall code compliance.

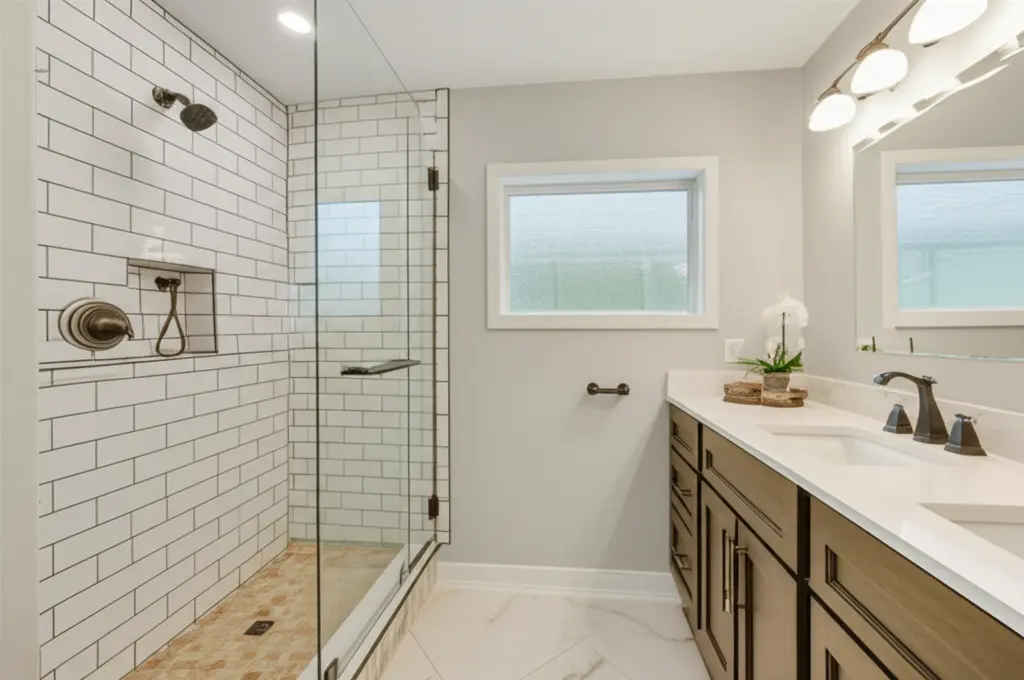

A completed bathroom that has passed final inspection — every system verified and documented

Your contractor should schedule each inspection and should not proceed to the next phase until the previous inspection passes. If a contractor says “we do not need to wait for the inspector” and closes up walls before rough inspections, that is a significant red flag. Inspections exist specifically to catch problems before they are buried. See our contractor evaluation guide for more on what to look for.

Unpermitted Work: Risks and Consequences

Some contractors avoid permits to save time, reduce costs, or avoid the scrutiny of inspections. As a homeowner, you need to understand the consequences because you — not the contractor — bear the long-term risk:

• No third-party verification: Without inspections, no one independent verifies the work meets code. Improperly wired circuits, inadequate venting, or a leaking shower pan go undetected until they cause damage.
• Insurance implications: Homeowner's insurance policies may deny claims for damage caused by unpermitted work. If an unpermitted electrical modification causes a fire, your insurer may refuse the claim.
• Resale complications: When selling your home, buyers (or their inspectors) may identify unpermitted work. This can reduce your sale price, delay closing, or require you to retrofit or remove the work. Permit records are public — a buyer's agent can check what permits were pulled for your address.
• Retroactive permits and penalties: If unpermitted work is discovered, the local building department may require you to obtain a retroactive permit, open finished walls for inspection, and pay penalty fees. The cost of retroactive permitting almost always exceeds the cost of permitting upfront.
• Homeowner liability: In California, the property owner is ultimately responsible for unpermitted work — even if a contractor performed it. The contractor may face licensing board action, but you are left with the building department enforcement.

Homeowner Verification Checklist

You do not need to be a code expert, but you can verify key items during your remodel. Here is a practical checklist:

Before work starts:

• Confirm the contractor's license is active on the CSLB website (cslb.ca.gov).
• Verify a permit has been pulled — you can check with your local building department or look for the permit card posted at your home.
• Ask for the scope of work that was submitted with the permit application.

During rough-in (before walls are closed):

• Confirm the rough inspection was scheduled and passed before drywall or cement board goes up.
• Look for GFCI-protected circuits in the electrical panel or at the first outlet on each bathroom circuit.
• Verify the exhaust fan duct runs to the exterior — not into the attic.
• Check that the shower valve is a pressure-balancing or thermostatic type (ask to see the valve body or packaging).

After completion:

• Confirm the final inspection was scheduled and passed.
• Test every GFCI outlet (press the test button — the outlet should kill power; press reset to restore).
• Test the shower valve anti-scald function (run the shower, then flush the toilet — the temperature should remain stable).
• Verify the exhaust fan operates when switched on and that you can feel airflow at the exterior termination point.
• Obtain copies of the final inspection sign-off and any permit documentation for your records.

Frequently Asked Questions
