10 Wet Room Design Ideas for a Fully Tiled Curbless Bathroom

The wet room is the European bathing concept that has quietly become the most-requested upgrade in luxury Sacramento-region remodels over the last five years. Unlike a traditional bathroom — where a glass-enclosed shower sits as a separate compartment beside a vanity and toilet — the wet room treats the entire wet zone as a single continuous waterproofed envelope. Shower and tub share the same tiled floor. Water from either fixture drains to the same linear or center drain. The glass partition (when present) divides traffic rather than containing water.

These ten design ideas are the wet room moves we install most often in Sacramento-region wet room conversions and new construction primary bathrooms. Each is field-tested for waterproofing performance, daily usability, and aesthetic impact. Wet rooms are more demanding to engineer than traditional bathrooms — the waterproofing detail and floor slope tolerate no shortcuts — but the result is a spa-quality bathing experience that no compartmentalized shower can match. For service detail see our wet room bathroom conversion service and our curbless shower installation service.

Wet room vs curbless shower — the distinction

Many homeowners use these terms interchangeably. They are not the same. A curbless shower is a single shower without a curb or threshold — water drains within the shower footprint, and the rest of the bathroom remains a dry zone. The shower has its own walls (typically two glass and one or two tile) that define a discrete shower compartment.

A wet room is a larger waterproofed envelope where the entire shower-and-bathing zone (or sometimes the entire bathroom floor) is tiled and waterproofed as one continuous wet area. Wet rooms accommodate both shower and freestanding tub within the wet envelope — the tub sits inside the same tiled-and-waterproofed zone as the shower head. The visual division between shower zone and tub zone disappears. Glass, when present, divides traffic rather than containing water. All wet rooms are curbless, but not all curbless showers are wet rooms.

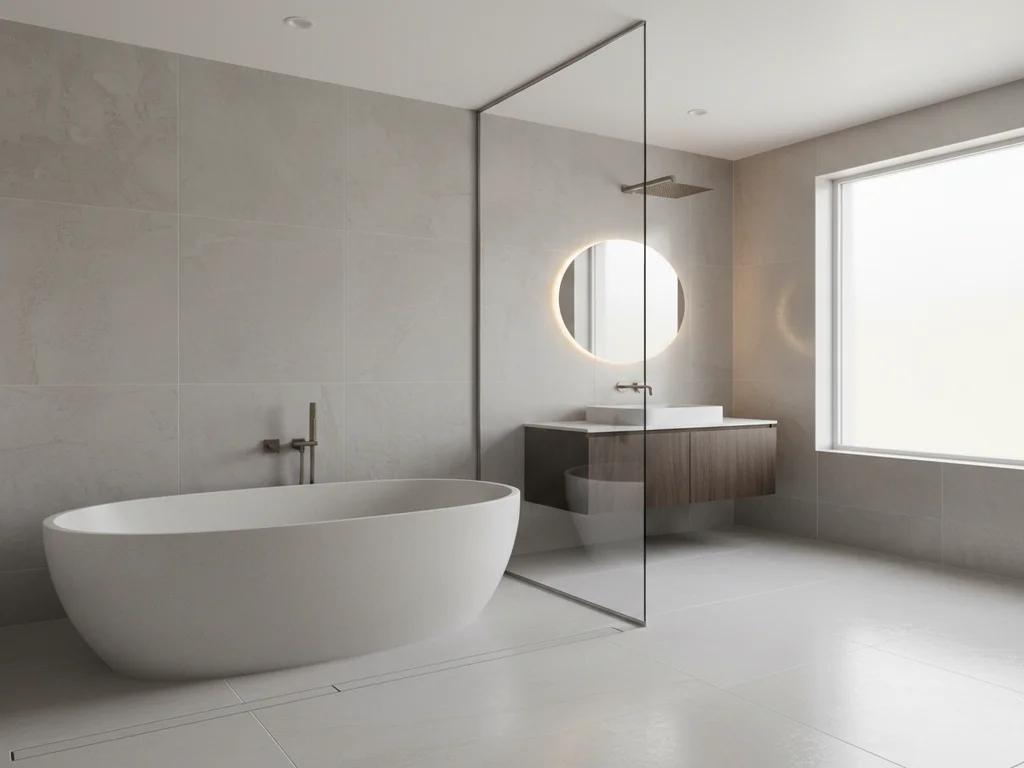

1. Curbless threshold with linear drain

The defining wet room move. Eliminate the shower curb. The floor slopes 1/4 inch per foot toward a linear drain placed at the back wall or along the long wall of the wet zone. Linear drains (Infinity Drain, Quick Drain USA, Schluter Kerdi-Line) range from 12 to 60 inches long. The longer drains accommodate higher water volume from rainfall heads and dual-shower-head configurations. Cost runs $400 to $1,500 installed depending on length and finish.

2. Single waterproofed envelope (floor and walls)

The entire wet room — floor and walls up to 6 to 8 feet — is waterproofed as one continuous membrane. The membrane bonds at floor-wall junctions with factory-bonded seam tape and thinset, creating an envelope that captures any water penetrating the tile. The envelope is what separates wet rooms from standard bathrooms — without it, water from the open shower migrates into the surrounding floor and fails the bathroom over years.

3. Glass partition instead of full enclosure

Wet rooms use glass to define traffic flow, not to contain water. A single panel of frameless tempered glass (typically 36 to 48 inches wide, 78 to 84 inches tall) sits between the wet zone and the dry zone or between the shower zone and the tub zone. The partition controls water splash without enclosing the user. Avoid framed enclosures (too traditional) and avoid full enclosures (defeats the wet room concept).

4. Freestanding tub inside the wet zone

Position a freestanding tub inside the wet zone envelope. The tub sits directly on the tiled wet floor, with water drainage from the tub managed through the floor drain rather than a dedicated tub drain. The configuration treats the tub as a fixture within the wet room rather than a separate piece of equipment. Choose stone resin, cast iron, or hand- cast stone tubs — all materials that handle being surrounded by tile and standing water.

5. Pebble or river-stone shower floor

Pebble mosaic floor at the shower-head zone (or across the entire wet room floor) provides natural slip resistance and references spa or onsen aesthetic. Specify warm-tone pebble (cream, oat, warm gray) with epoxy grout for stain resistance. The pebble texture also provides foot massage during showers — a small but unexpected daily luxury. Best for Japandi, Mediterranean, and contemporary wet rooms.

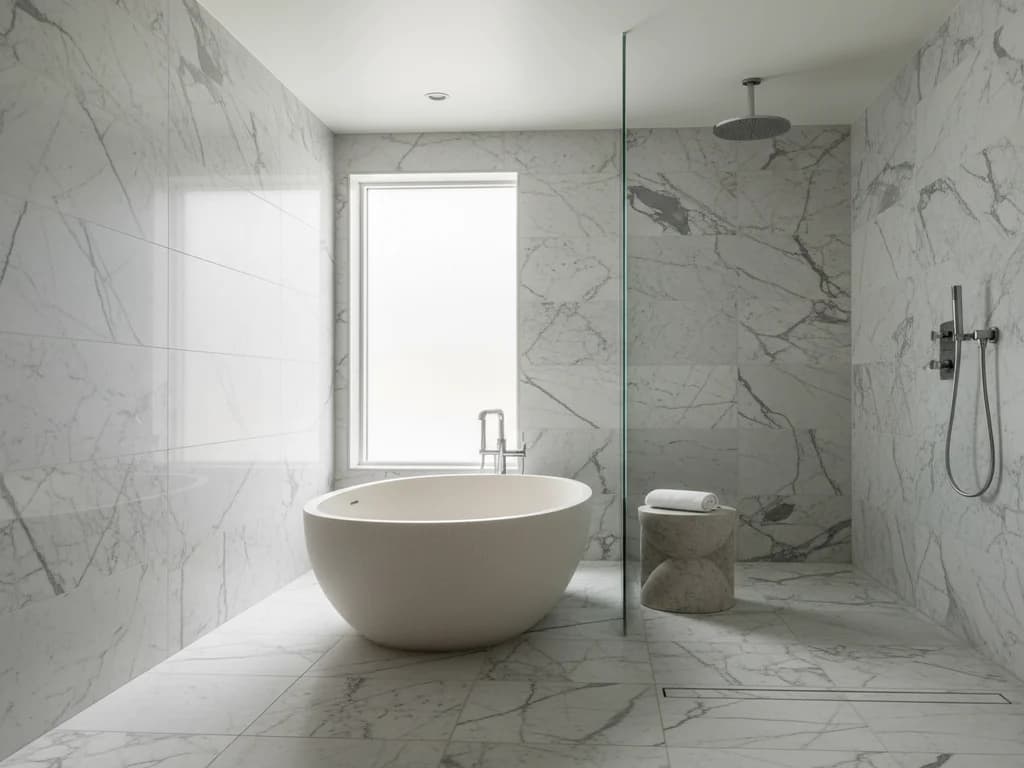

6. Continuous floor-wall-ceiling tile run

Continue the same tile from the floor up the walls and across the ceiling. The continuous run eliminates visual boundaries between surfaces, making the wet room feel cocoon-like and increasing perceived spatial cohesion. Best with large-format porcelain (24x48 or 24x60 inches) or slab tile where individual tile boundaries minimize. For luxury wet rooms, specify the same stone material on floor, walls, and ceiling — Calacatta marble or Carrara slab continuing across all surfaces creates the apex of wet room design.

7. Open shower with no glass at all

For wet rooms with adequate size (10x12 or larger), eliminate the glass partition entirely. The shower head sits at one end of the wet zone, the tub at the other, and the user navigates between them through the open wet room. The configuration references European spa design and Japanese onsen layouts. Requires careful planning of splash patterns so water from the shower head does not reach the vanity or door zones. Best when the wet room sits inside a larger primary bathroom rather than occupying the entire bathroom footprint.

8. Half-wall divider with bench top

A 36 to 48-inch tall pony wall divides the wet room from the dry zone (or divides the shower from the tub within the wet room). The top of the pony wall is finished as a bench — typically with a stone slab (matching the wall tile material) at 18 inches deep. The bench provides seating during showering, storage for towels and toiletries, and architectural detail that breaks up the wet room space without fully enclosing it.

9. Schluter Kerdi waterproofing system

Schluter Kerdi is the most-installed wet room waterproofing system in Sacramento-region custom remodels. The system uses Kerdi-Board (lightweight waterproof substrate) or Kerdi-Membrane (over cement board) with factory-bonded corners (Kerdi-Kers) and seam tape (Kerdi-Band). The system carries a 20-year manufacturer warranty when installed by Schluter-certified installers. Alternatives include Wedi (also excellent), Laticrete Hydro Ban (good for DIY-feasibility), and USG Durock Shower System (good for tight budgets). For complete waterproofing detail see our companion Schluter vs traditional pan guide.

10. Heated radiant floor across the entire wet zone

Electric radiant heat mat under the entire wet zone floor (not just the shower zone). The warm floor underfoot during winter is a substantial luxury upgrade and accelerates water evaporation from the tile after use. Specify a programmable thermostat that activates the floor heat in the early morning before the user enters the bathroom. The 1/4-inch floor slope toward the drain works with radiant heat mats — the mat conforms to the slope during installation. Cost runs $8 to $15 per square foot installed across the wet zone area.

Waterproofing and drainage notes

Three non-negotiables in wet room construction. First, floor slope. California Plumbing Code requires 1/4 inch per foot toward the drain. The slope must be continuous and consistent — local high spots or low spots create water pooling that fails the wet room within months. Use a self-leveling floor pre-slope kit (Schluter Kerdi- Shower-T, Wedi Pre-Sloped Tray) for guaranteed slope rather than hand-floating the slope in cement.

Second, waterproof membrane application. The membrane goes under the floor tile, up the walls a minimum of 6 feet (some Sacramento jurisdictions require 8 feet), and around any fixtures with factory-bonded boots (Kerdi-Seal-PS, Schluter-Kerdi- Bath-Connector). Seams between adjacent membrane sheets use 5-inch overlap with thinset adhesive. Third, permit and inspection. All Sacramento-region jurisdictions require permits for wet room conversions and inspect the waterproof membrane before tile is applied. Schedule the inspection before tile installation begins; an inspection failure at tile-set stage means tearing out tile to remediate.
